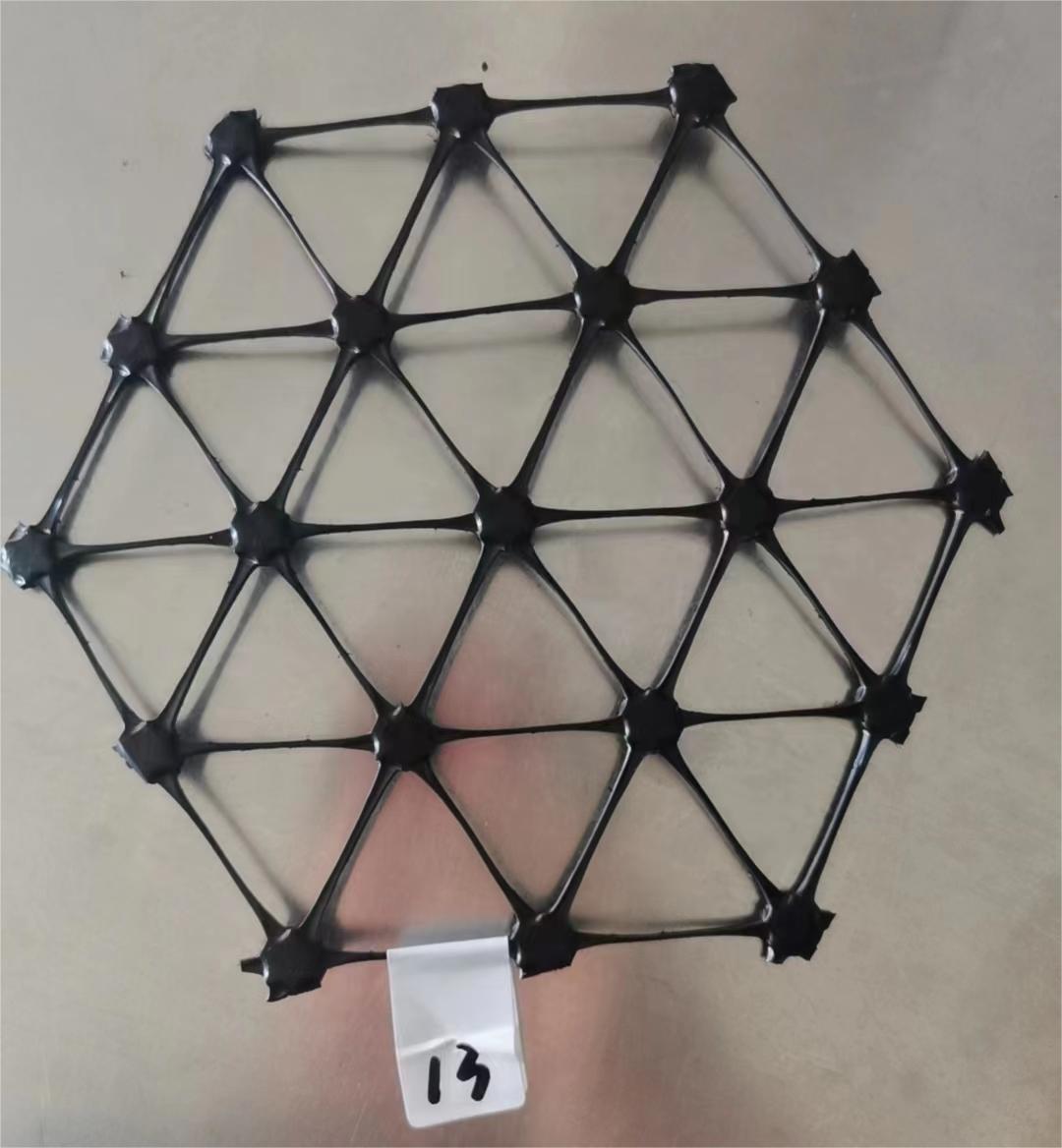

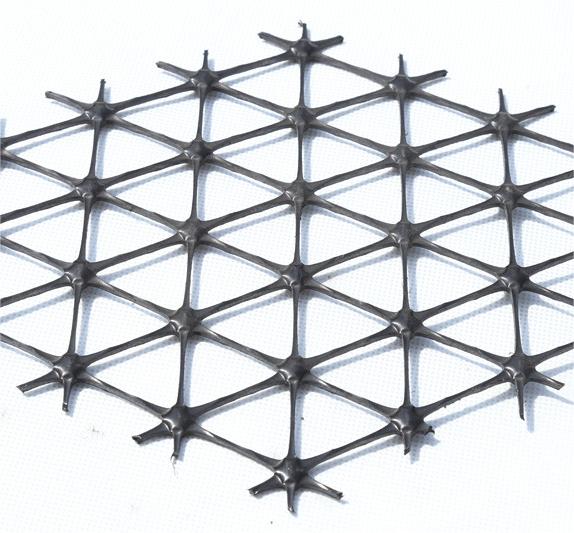

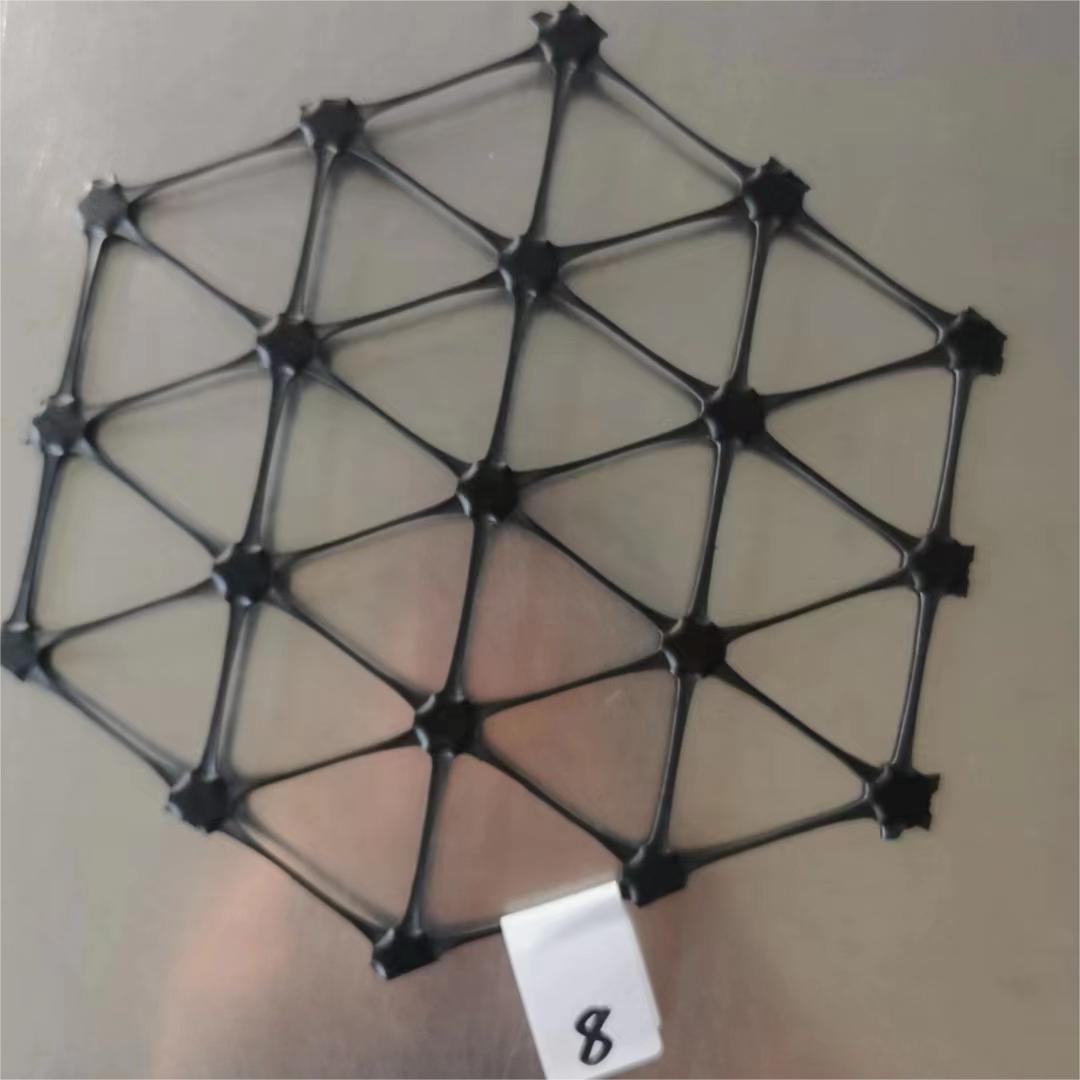

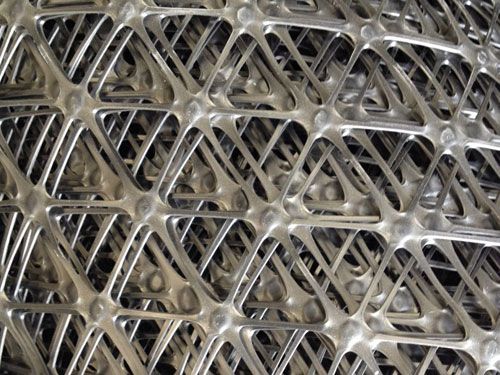

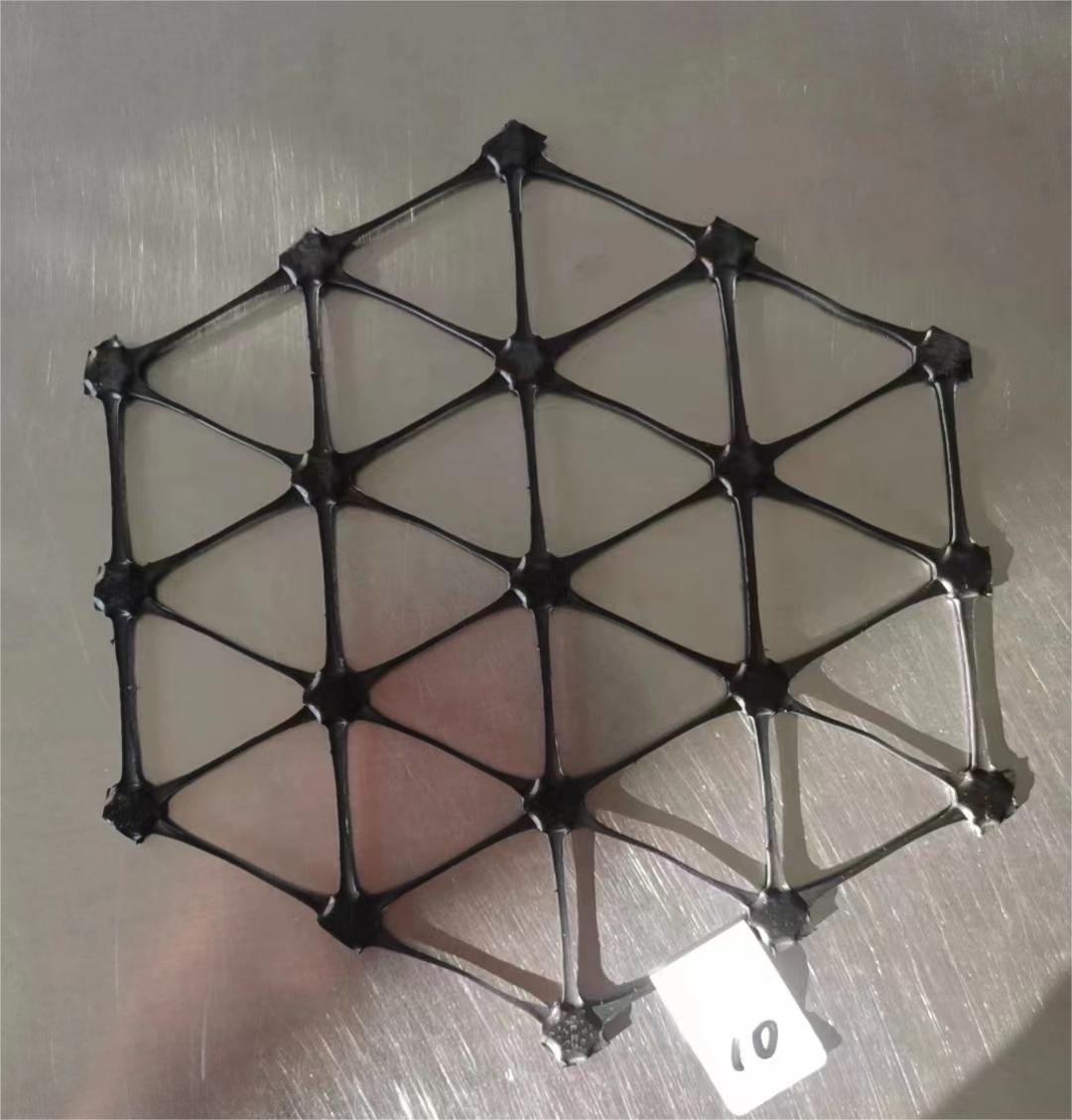

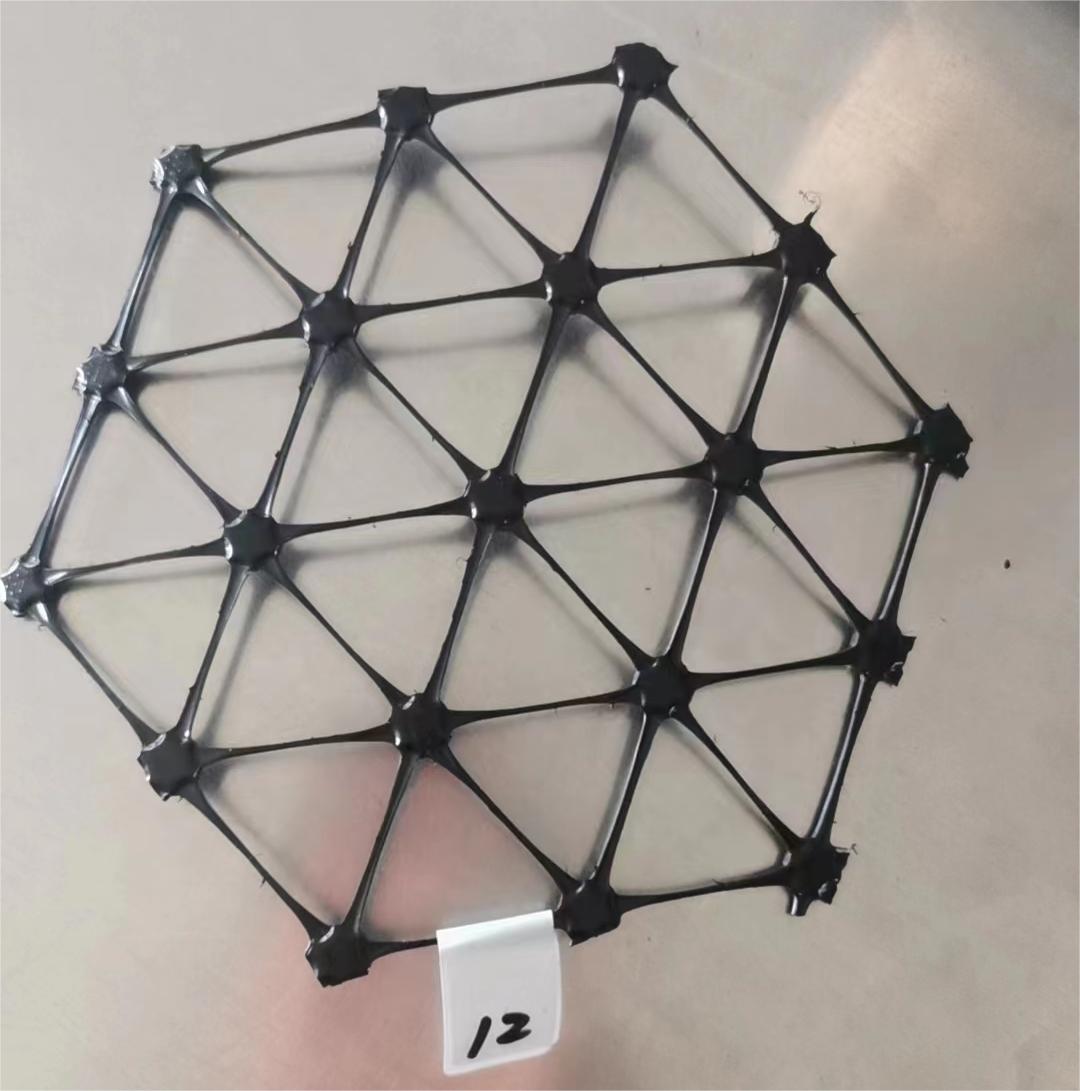

Multi-directional Geogrid
The main advantages of multidirectional geogrid:
1. it has a stable triangular structure, and it is not easy to have structural deformation when it is subjected to force;
2. able to withstand multi-directional loads at the same time, not easy to occur node torsion damage;
3. because of its rectangular cross-section, it is not easy to produce with the soil body of the slip, reinforcing effect is better. 4. because the nodes than the two-way grids;
4. because the node is larger than the two-way grating, so the node is more efficient, the node is not easy to damage. 5. and because the multiple bars share the same reinforcement;
5. because of the multiple tendons share the nodes, so it is more energy-saving materials, which is also more energy-saving.
Product description
Multi-directional plastic geogrid (three-way plastic geogrid and four-way plastic geogrid) is a major geosynthetics material, compared with other geosynthetics, it has unique performance and efficacy. Geogrids are commonly used as reinforcement for reinforced soil structures or as reinforcement for composite materials and so on. The utility model to plastic tensile strip grid for the force unit, tensile strip vertical winding solid in the connection to form a chamber. The connecting piece consists of the upper piece and the lower piece, the upper piece is provided with a protrusion, which can be inserted into the hole at the top of the lower piece and fixedly connected with the lower piece; the lower piece is provided with a cross cross groove in the vertical direction in the center of the lower piece, and the tensile strips are wound around in any two adjacent grooves in the lower piece, and the height of the tensile strips is not greater than the height of the grooves in the lower piece.
The unique three-dimensionality and low-delay high strength of this utility model makes it have excellent drawing performance and friction performance in the combination with soil body, thus it has more reinforcing advantages than other geogrids and geocells. The new three-dimensional geogrid, relates to a kind of geogrid, which solves the practical problems of existing grids or chambers in engineering applications.
The new plastic tensile strip grid as a force unit, tensile strip vertical winding solid in the connection to form a chamber. Connector by the upper and lower parts, the upper part is equipped with a protrusion, can be inserted into the lower part of the top of the hole, and the lower part of the fixed connection; the lower part of the center of the vertical direction of the cross cross grooves, tensile strips around any two adjacent grooves in the lower part of the tensile strips is not greater than the height of the groove in the lower part of the height. The new unique three-dimensionality and low-delay high-strength, so that in the combination with the soil body, has excellent tensile properties and friction properties, so it has more reinforced advantages than other geogrids and geocells.
Multi-directional plastic geogrid is more important is the structure in the soil and soil in the three-dimensional direction of the combination, so as to realize the role of different directions to prevent soil erosion, enhance the role of preventing the settlement of the roadbed. In the use of one-way plastic geogrid and two-way plastic geogrid anti-settlement effect of several times, is to enhance the life of the roadbed is the ideal product.
